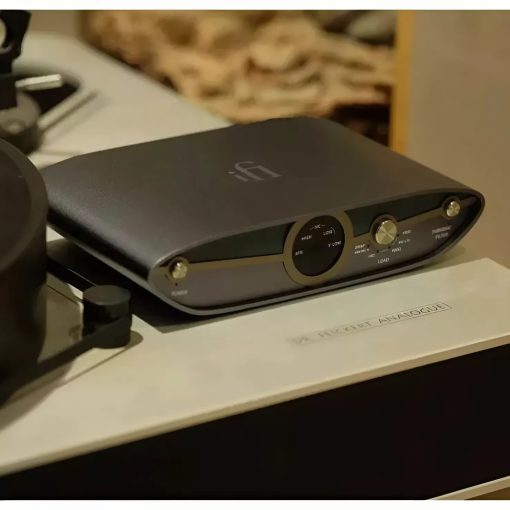

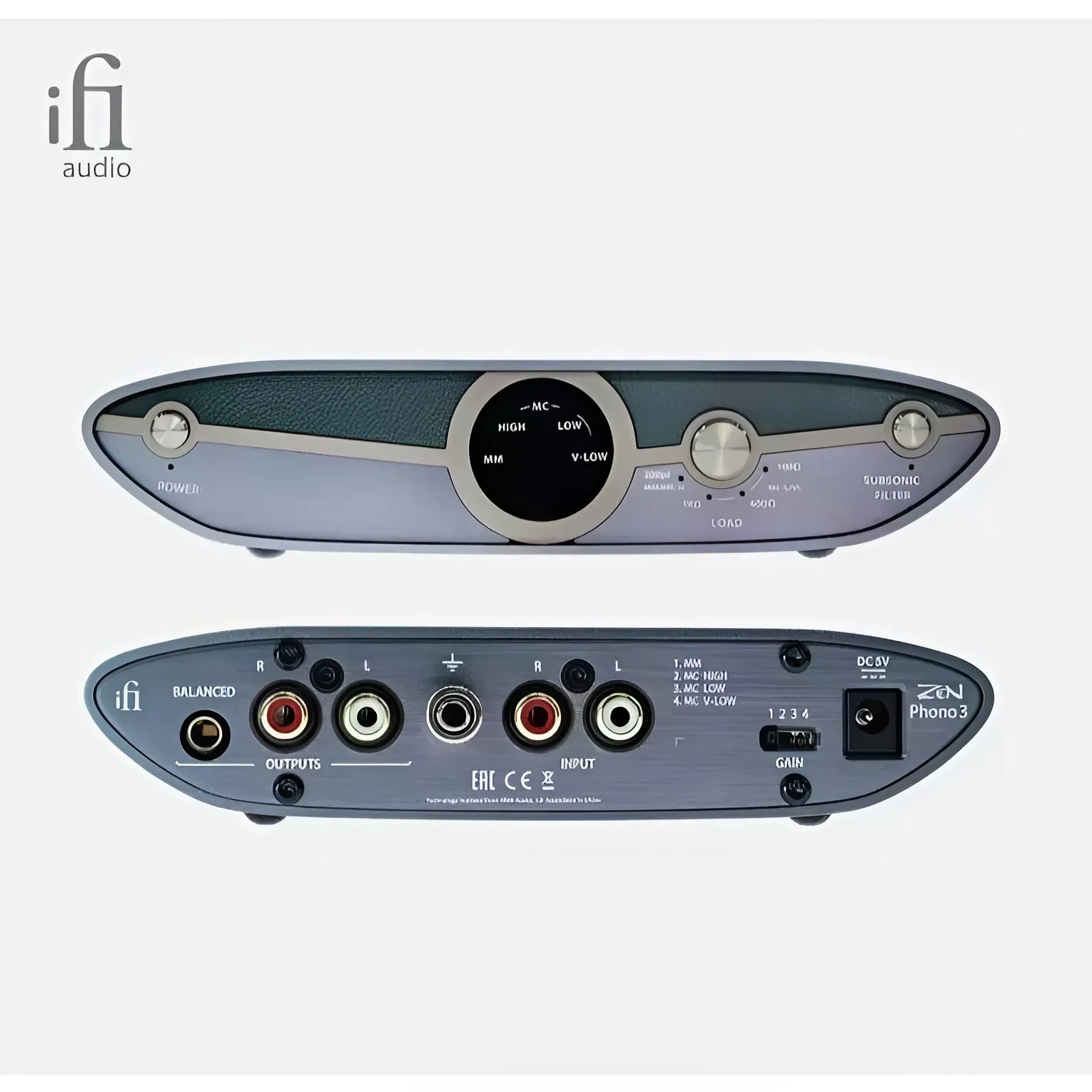

Zen Phono 3 boasts futuristic features unlike any other entry-level stage:

MM/MC with 36-72dB gain range

Independent loading adjustment

Super-silent -151dBV noise floor

Precise RIAA with balanced output

Intelligent subsonic filter

High-tech 1.2MHz clean power supply

Specifications

Gain SettingsMM36dB MC High48dB MC Low60dB MC V-Low72dBMax Output Voltage (RMS)Bal100kΩ: ≥19.98V (THD+N <1%)  600Ω: ≥12.75V (THD+N <1%) SE100kΩ: ≥10.07V (THD+N <1%)  600Ω: 7.94V (THD+N <1%)Output ImpedanceBAL200Ω SE100ΩInput Impedance MM: 47KΩ (100/200pF)  MC High: 47kΩ (100/200pF)  MC Low: 1k/400/100Ω  MC V-Low: 1k/400/100ΩSNRMM91dB(A)/82dB (unweighted 80kHz BW)(2V Balanced, 1V Single-Ended)MC High81dB(A)/72dB (unweighted 80kHz BW) MC Low89.6dB(A)/80dB (unweighted 80kHz BW) MC V-Low78.6dB(A)/69dB (unweighted 80kHz BW)Harmonic DistortionMM<-91dB/0.0027%(2V Balanced, 1V Single-Ended @ 600Ω)MC High<-80dB/0.0095% MC Low<-70dB/0.031% MC V-Low<-73dB/0.022%Channel Separation >75dB (1kHz all modes)Frequency ResponseBAL20Hz-80kHz (-3dB) SE20Hz-20kHz (-0.15dB)Dimensions(Length x Width x Height)158 x 115 x 35mm (6.2” x 4.6” x 1.4”)Net Weight 456gPower Supply Requirement DC 5V/0.5A (centre positive)Power Consumption No Signal ~1.5W; Max Signal ~1.8WLimited Warranty 12 Months*
