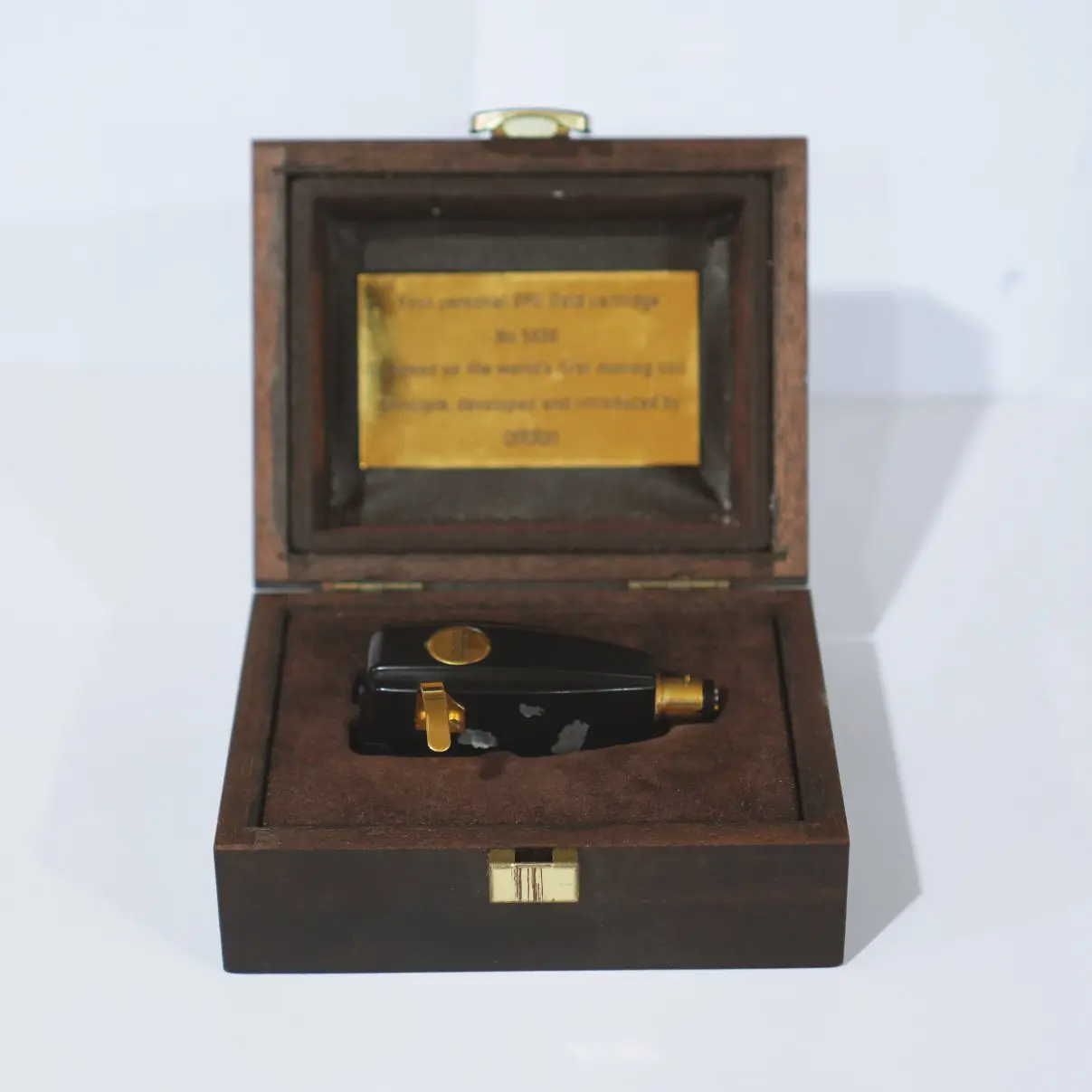

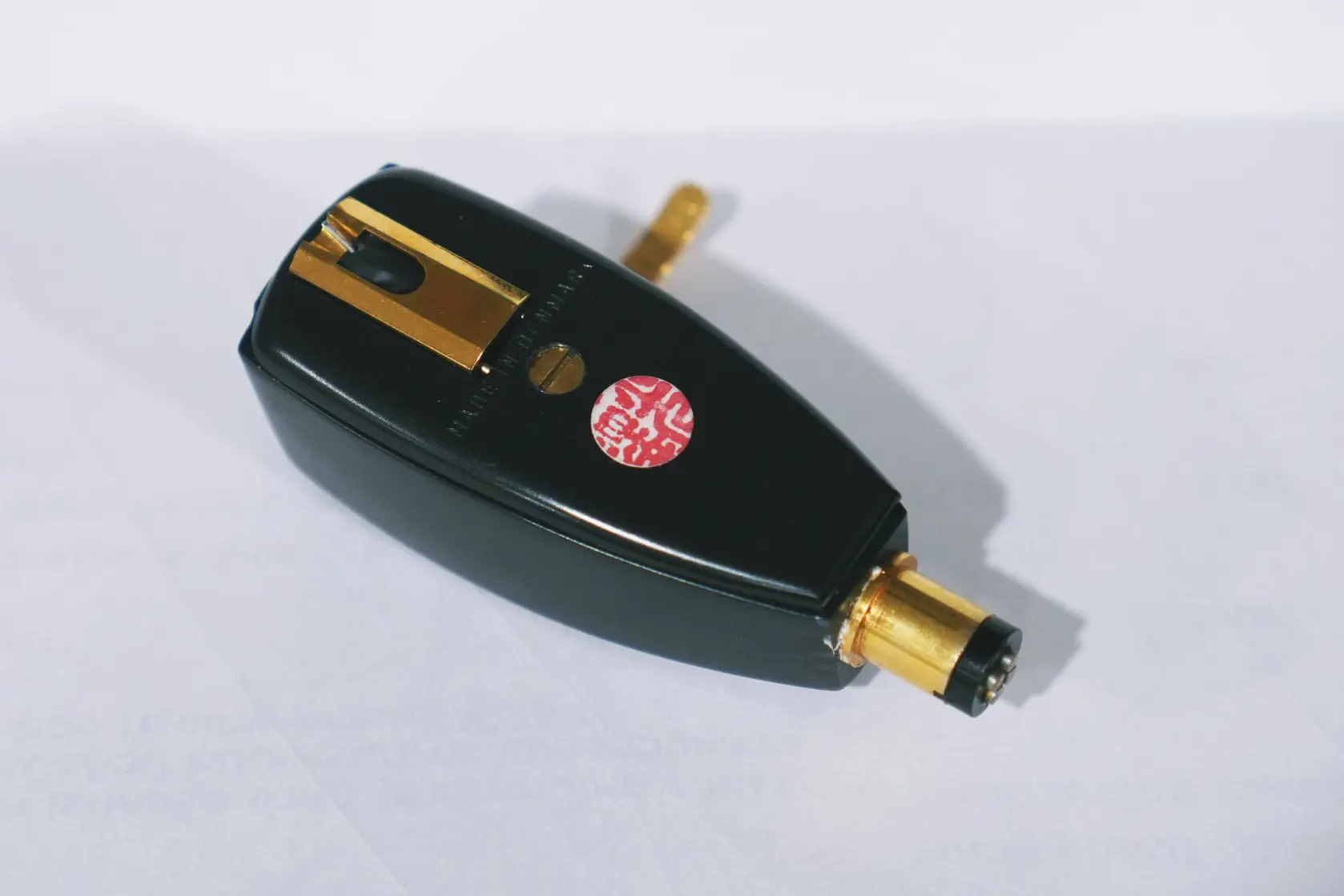

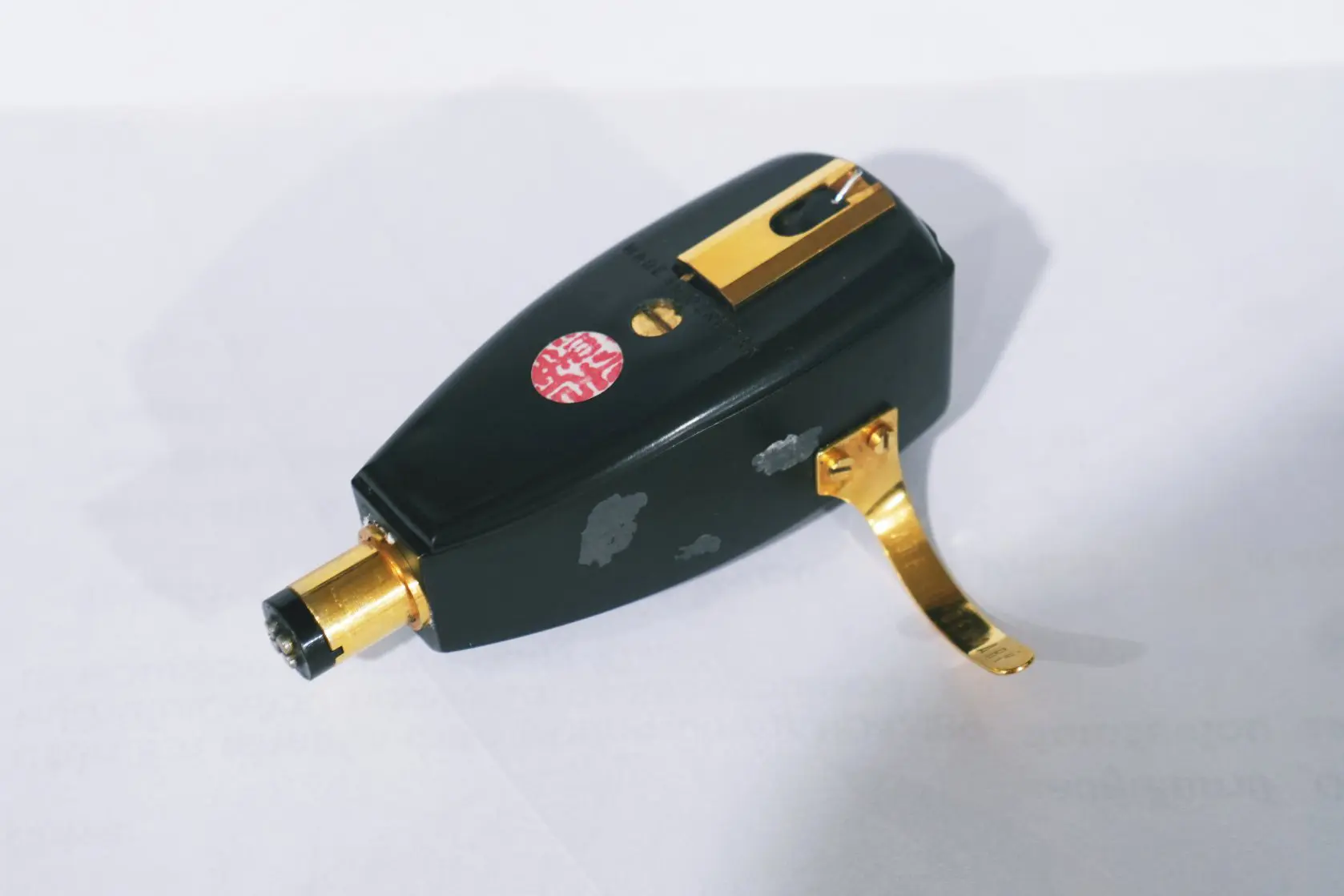

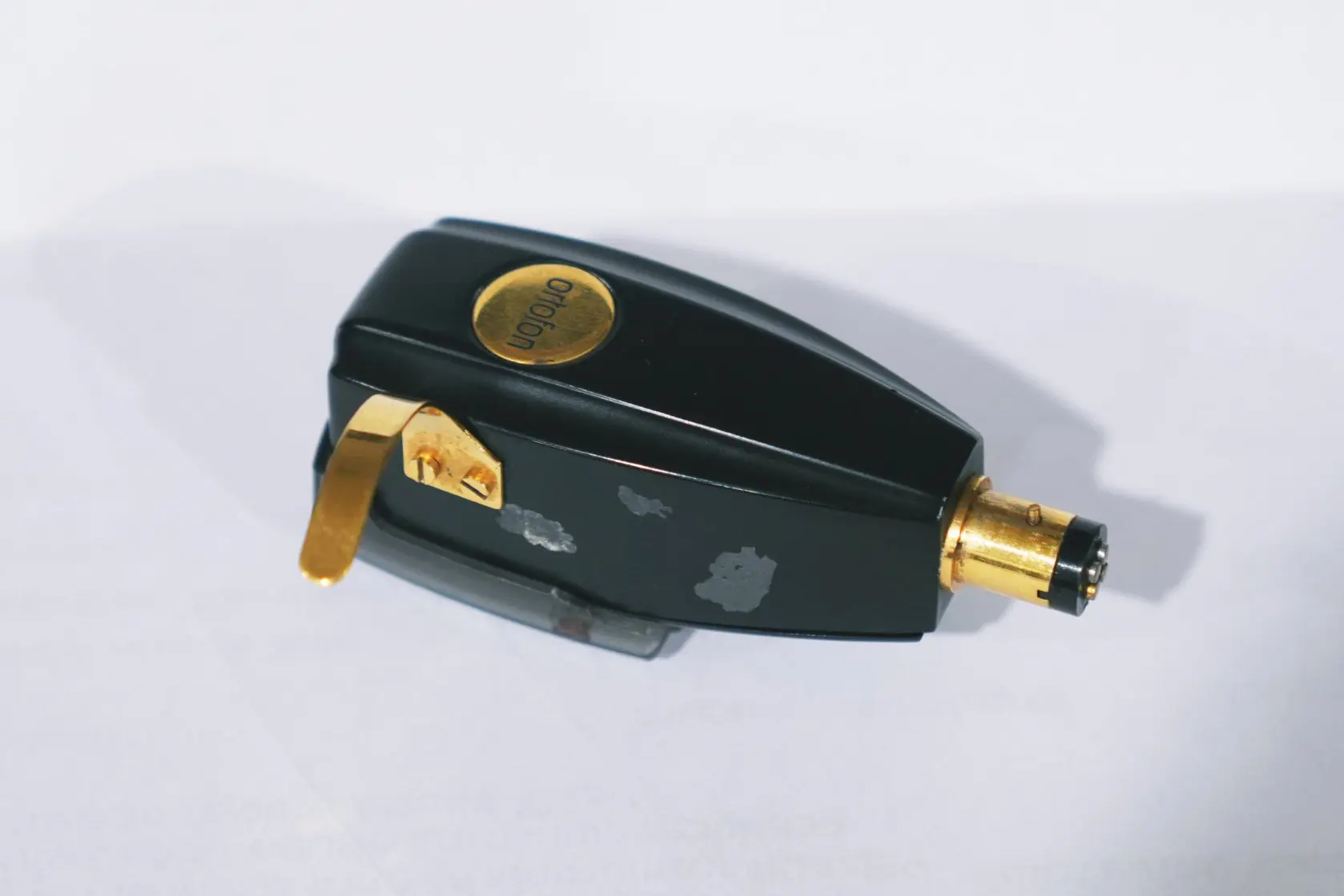

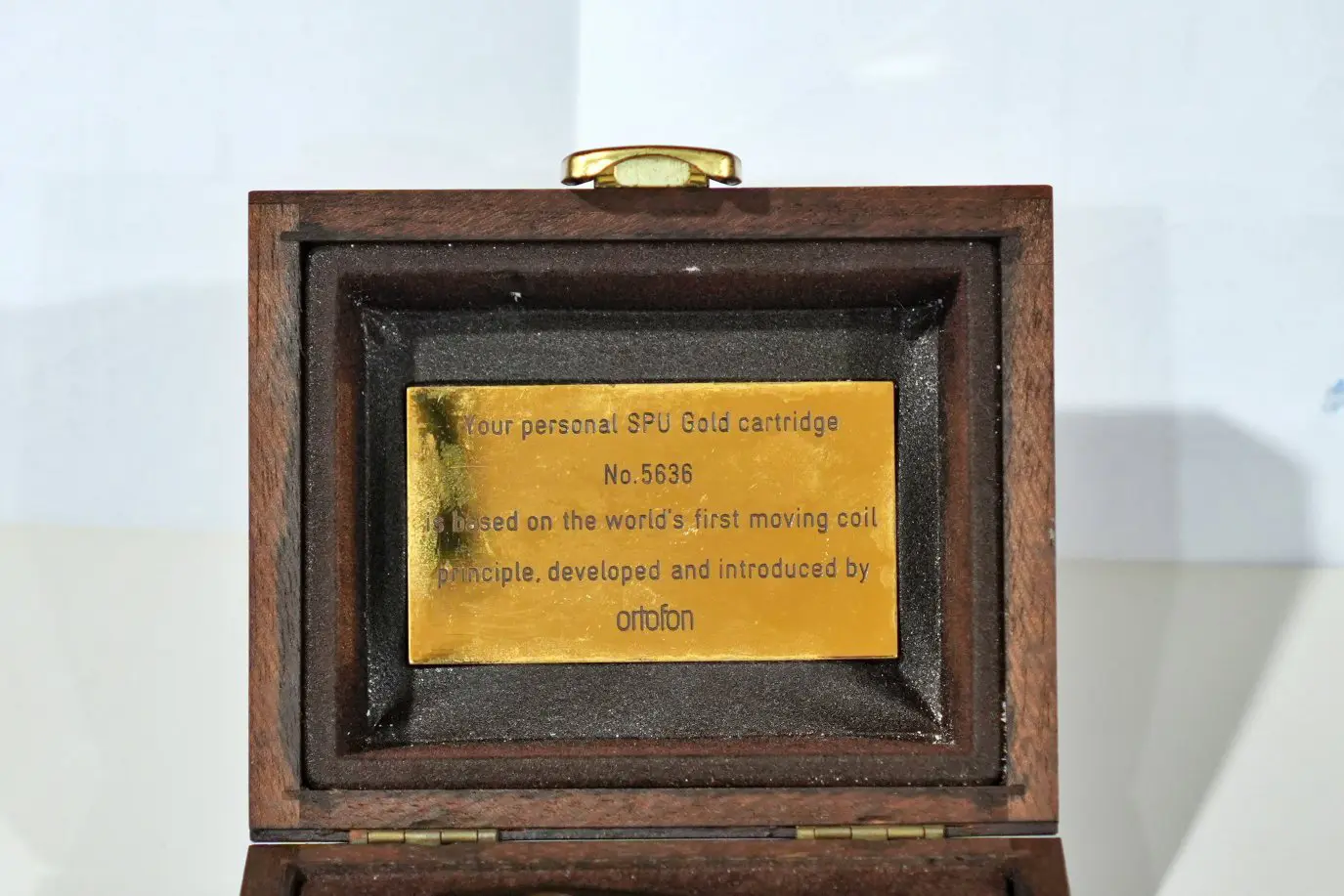

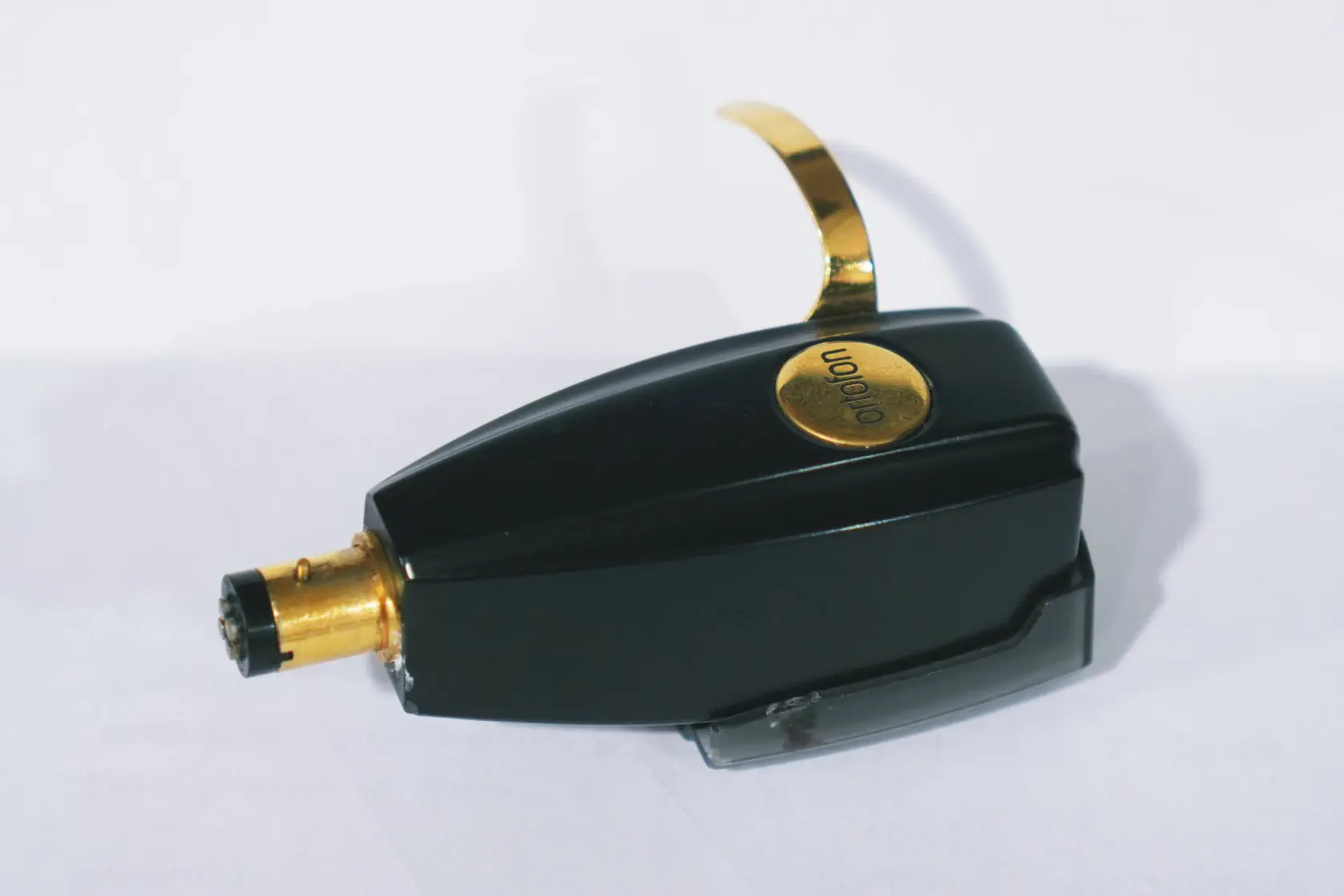

หัวเข็ม Ortofon SPU Gold (Original Box)
38,000 บาท
รายละเอียดสินค้า
SPU Gold Technical data
Output voltage at 1000 Hz, 5cm/sec. 0,2 mV
Channel balance at 1 kHz – 1 dB-
Channel separation at 1 kHz – 25 dB
Frequency response – 20-20.000 Hz +/-1,5 dB
Tracking ability at 315Hz lateral – 65 µm
Tracking force range – 3 – 5 g (30-50 mN)
Compliance, dynamic, lateral – 8 µm/mN
Stylus type – True Elliptical
Stylus tip radius – r/R 6/17 µm
Tracking angle – 20°
FIM distortion at recommended tracking force DIM 45.542 – < 1%
Internal impedance, DC resistance per channel – 3 Ohm
Recommended load impedance – > 10 Ohm
Cartridge colour – Gold/Black
Cartridge weight, complete with headshell – 32 g
