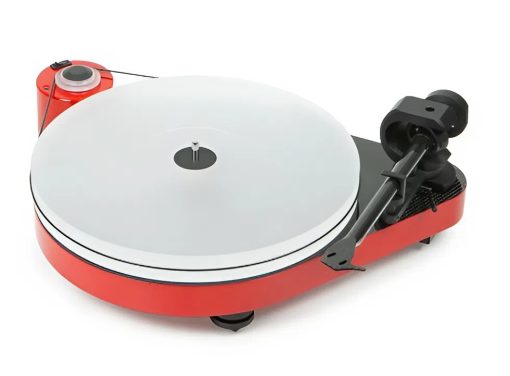

Manual turntable with 9” Evo tonearm

Outboard AC Motor & Acrylic Platter

RPM 5 Carbon utilises a radical concept with a lot of innovations, that originate from its big brother RPM 9 Carbon: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. The acoustically inert platter is made from acrylic. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. The classy 9“ Evo tonearm, which is made from carbon fibre is suitable for any high-quality MM or MC cartridge. A TPE-damped counterweight eliminates unwanted resonances.

The RPM 5 Carbon is available with or without Ortofon 2M-Silver cartridge. A super shielded, semi-symmetrical, low-capacitance Pro-Ject Connect it E phono cable is included.

In the box:

RPM 5 Carbon (with or without Ortofon 2M-Silver)

Connect it E Phono Cable

Record clamp

Adapter for 7“ singles

Power supply

Features

Precision belt drive using free-standing synchronous motor

Ultra-precision DC-driven AC generator motor power

Inverted platter bearing with ceramic ball

Acoustical inert acrylic platter

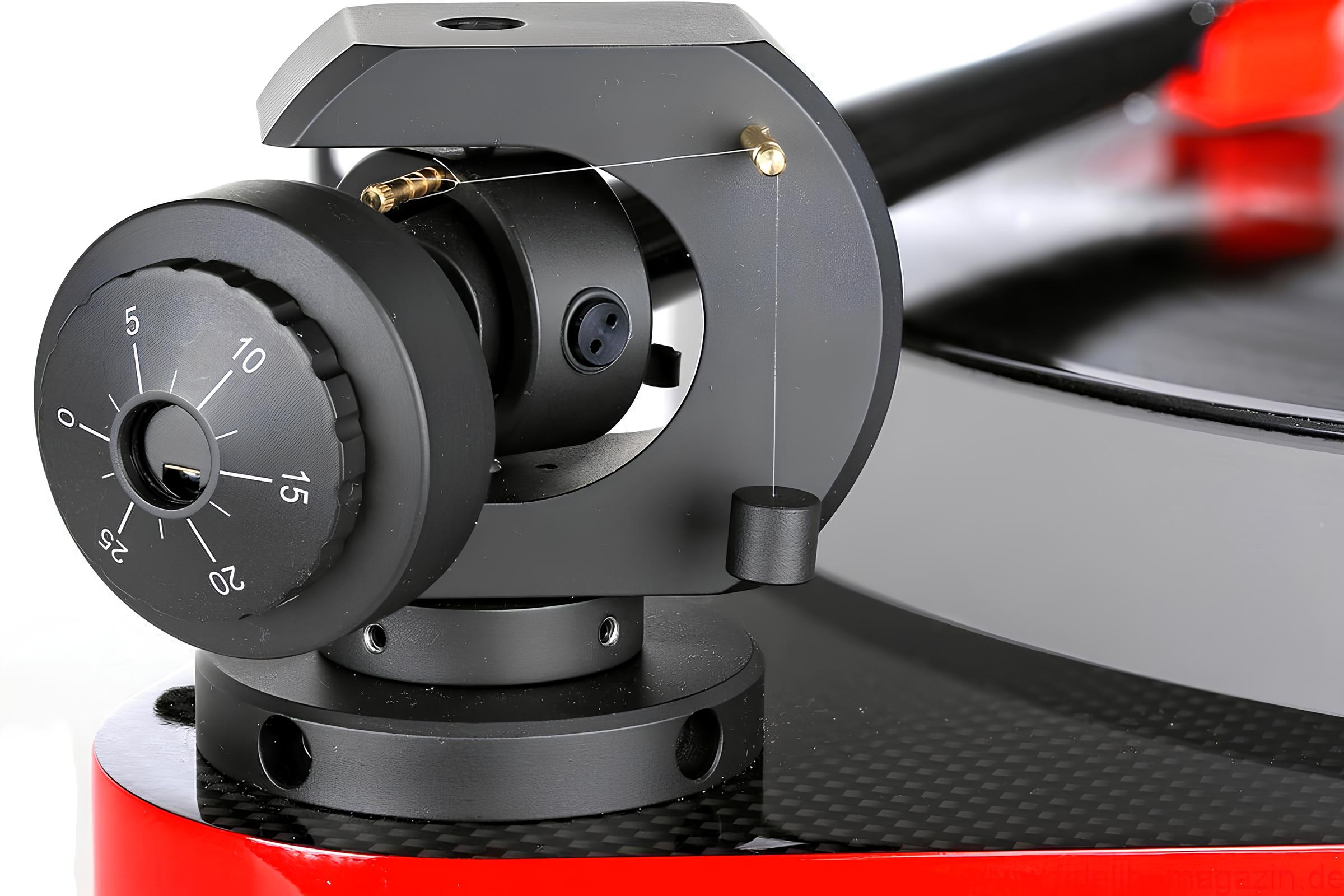

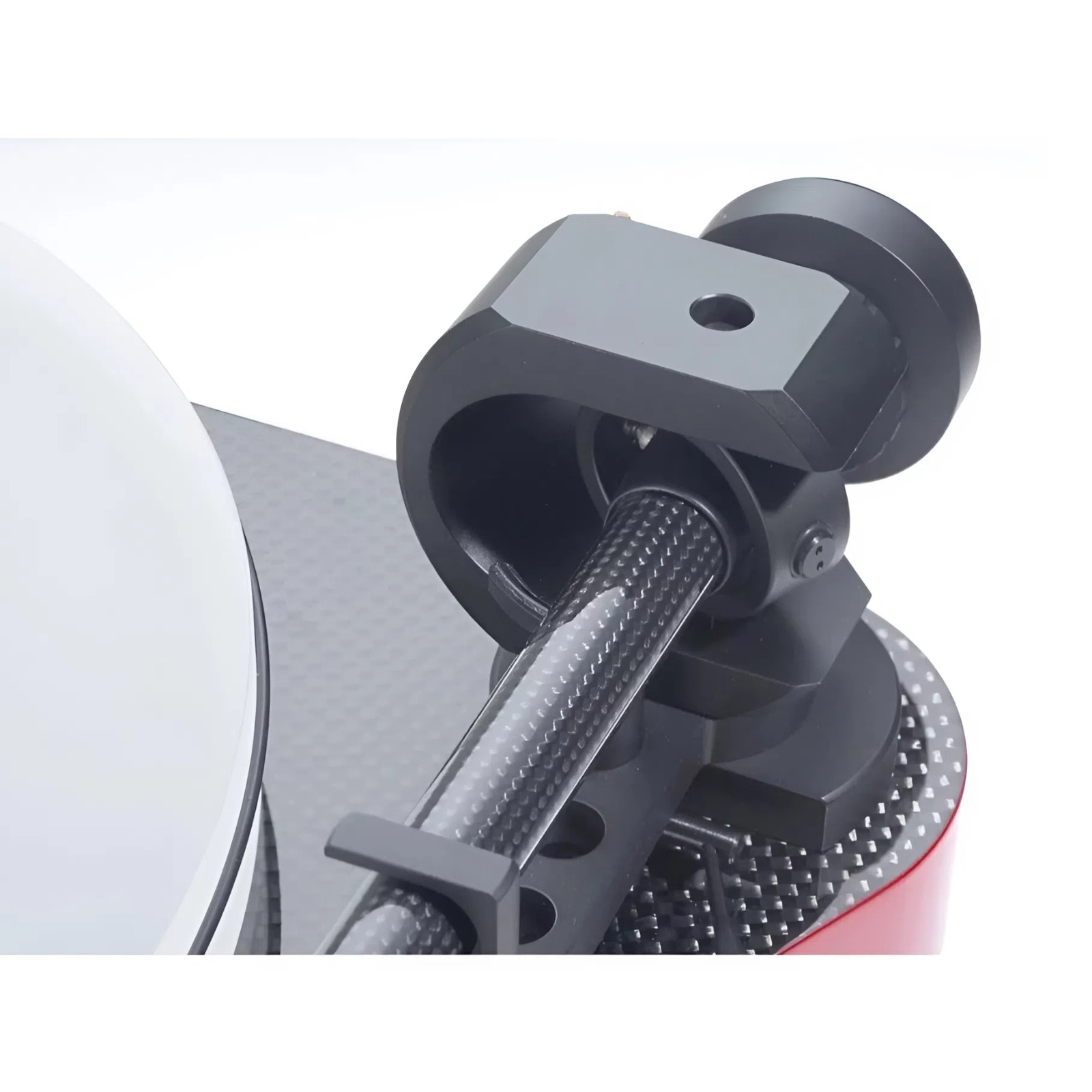

9” cc EVO tonearm made from carbon

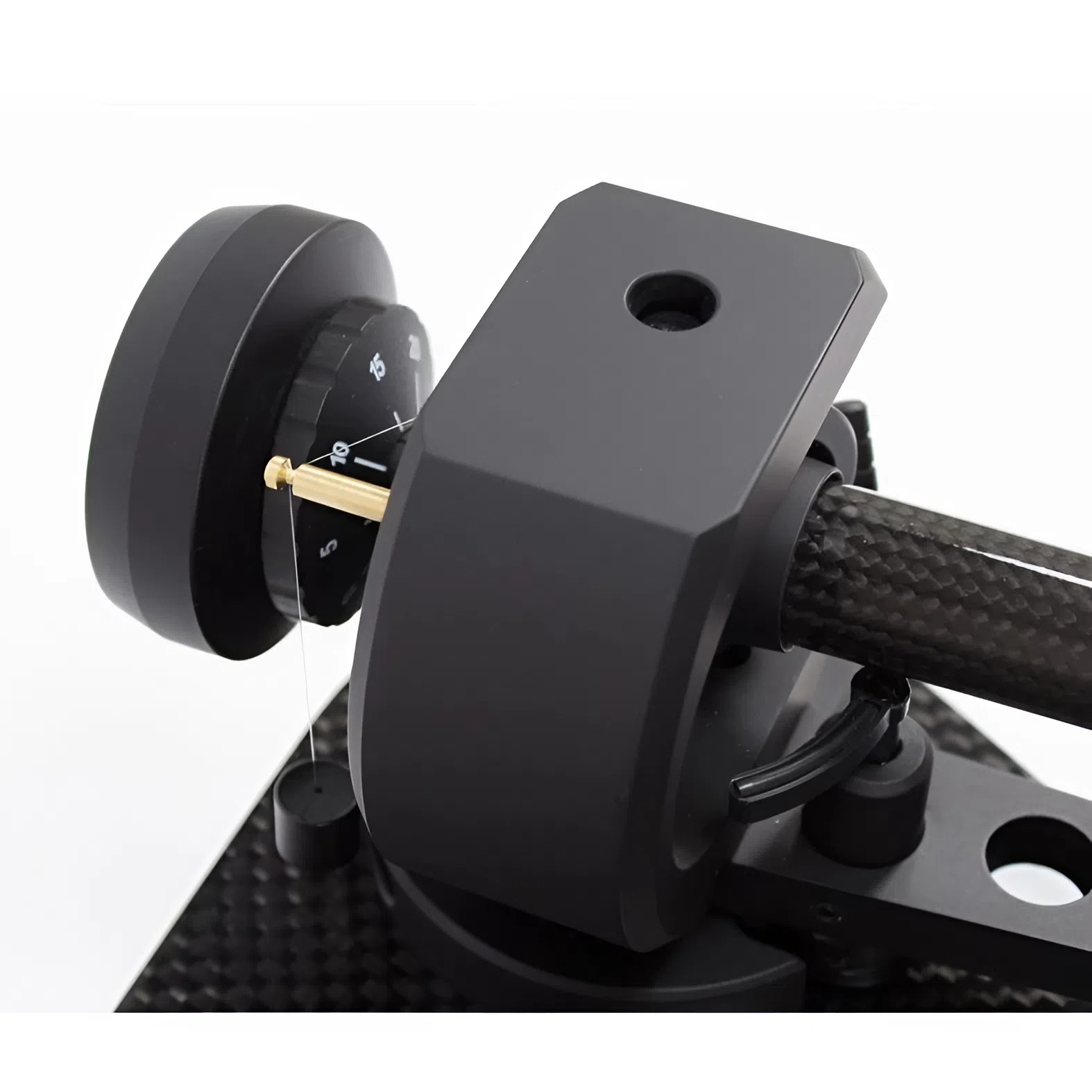

Counterweight with TPE damping

Adjustable aluminium tip-toe feet

Available with or without Ortofon 2M Silver cartridge

Three high-gloss colours (black, red, white)

Lid available as an option

Technical Specifications

Speed33, 45 (manual speed change)Drive principleBelt drivePlatter300 mm acrylicMains bearingStainless steel axle with ceramic ballSpeed drift33: +/- 0.12% I 45: +/- 0.10%Wow & flutter33: +/- 0.17% I 45: +/- 0.08%Signal to noise73dBTonearm9” EVO carbonEffective arm length230 mmEffective arm mass8 gOverhang18 mmTracking force0 – 25 mNIncluded accessories15 volts DC / 500 mA power supplyPower connection110/240 Volt – 50 or 60 HzPower consumption5 watt max / < 0,5 watt standbyDimensions430 x 150 x 323 mm (WxHxD)Weight8.0 kg net
