Turntable section

Drive System Belt Drive

Motor DC Motor

Speed 33 1/3 RPM, 45 RPM

Rotation Speed Variation +/–2%

Wow and Flutter 0.2%

Platter Aluminum Die-cast

Diameter of Platter 12“, 300mm

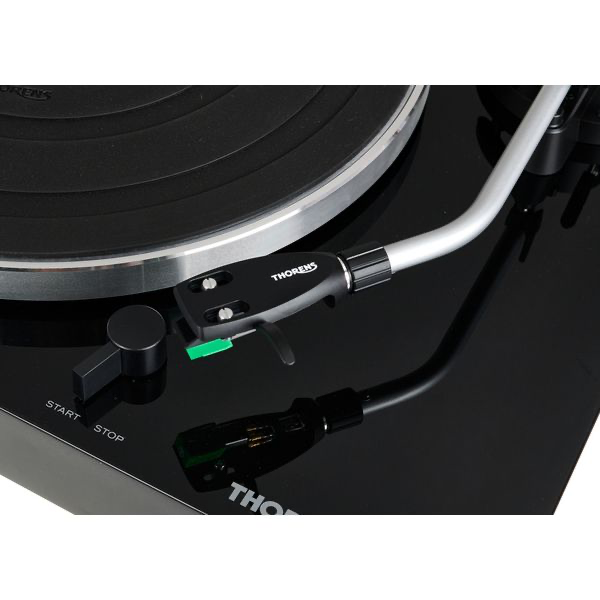

Tonearm section Alumi tube

Type Static Balance, J Type

Effective Arm Length 9“, 232,8 mm

Stylus Pressure Range 0 to 4g

Supported Cartridge Weight 3.5 bis 6.0g

Overhang 17,8 mm

Anti-skating Adjustment Supported

Cartridge section

Type MM type (Audio-Technica AT 95 E)

Stylus Construction Bonded Diamond

Frequency Response 20Hz to 20kHz

Channel Balance 20 dB

Output balance 2 dB

Vertical Tracking Angle 20 degrees

Supported Load Impedance 47k ohms

Output Voltage 3.5 mV (1kHz, 3.54 cm/sec.)

Stylus Pressure 2 g

Cartridge Weight 5,7 g

Head-shell Weight 10g (including Screws, Nuts and Wires)

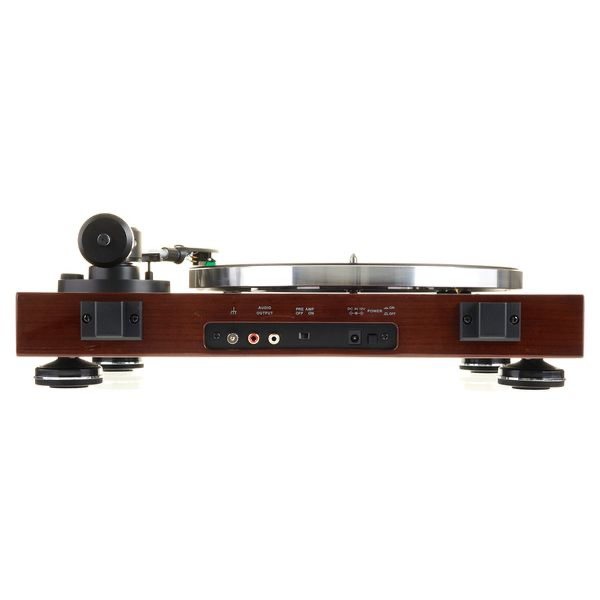

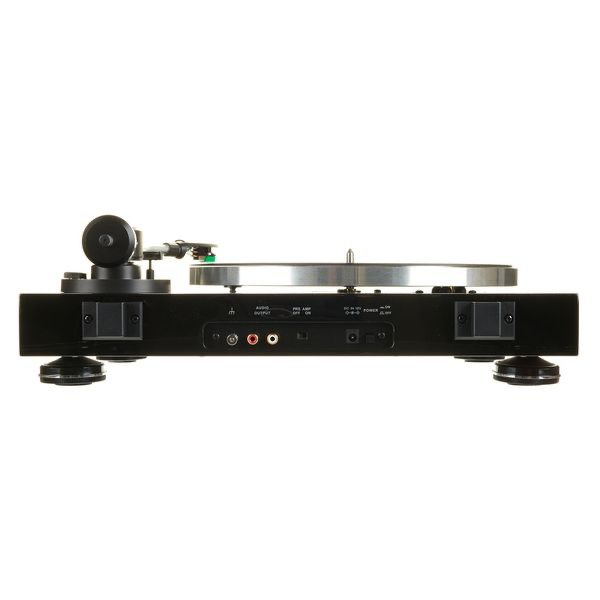

Analog Output

Connector RCA Pin jack (Gold-plated)

Power AC 100 to 240V, 50/60Hz

Power Consumption 1.5W (less than 0.5W at Standby)

Overall Dimensions (W x D x H) 420 x 355x 121mm

Weight Approx. 4.8 kg
