ST 80 SE

The ST-80 Special Edition Moving coil transformer delivers a detailed reproduction with a touch of warmth accompanied by a full bodied sound quality. Compared with existing models, the ST-80 SE has a larger bobbin, more layers in the permalloy core, and more coil windings.

Moving Coil transformer

The ST-80 Special Edition Moving coil transformer delivers a detailed reproduction with a touch of warmth accompanied by a full bodied sound quality. Compared with existing models, the ST-80 SE has a larger bobbin, more layers in the permalloy core and more coil windings.

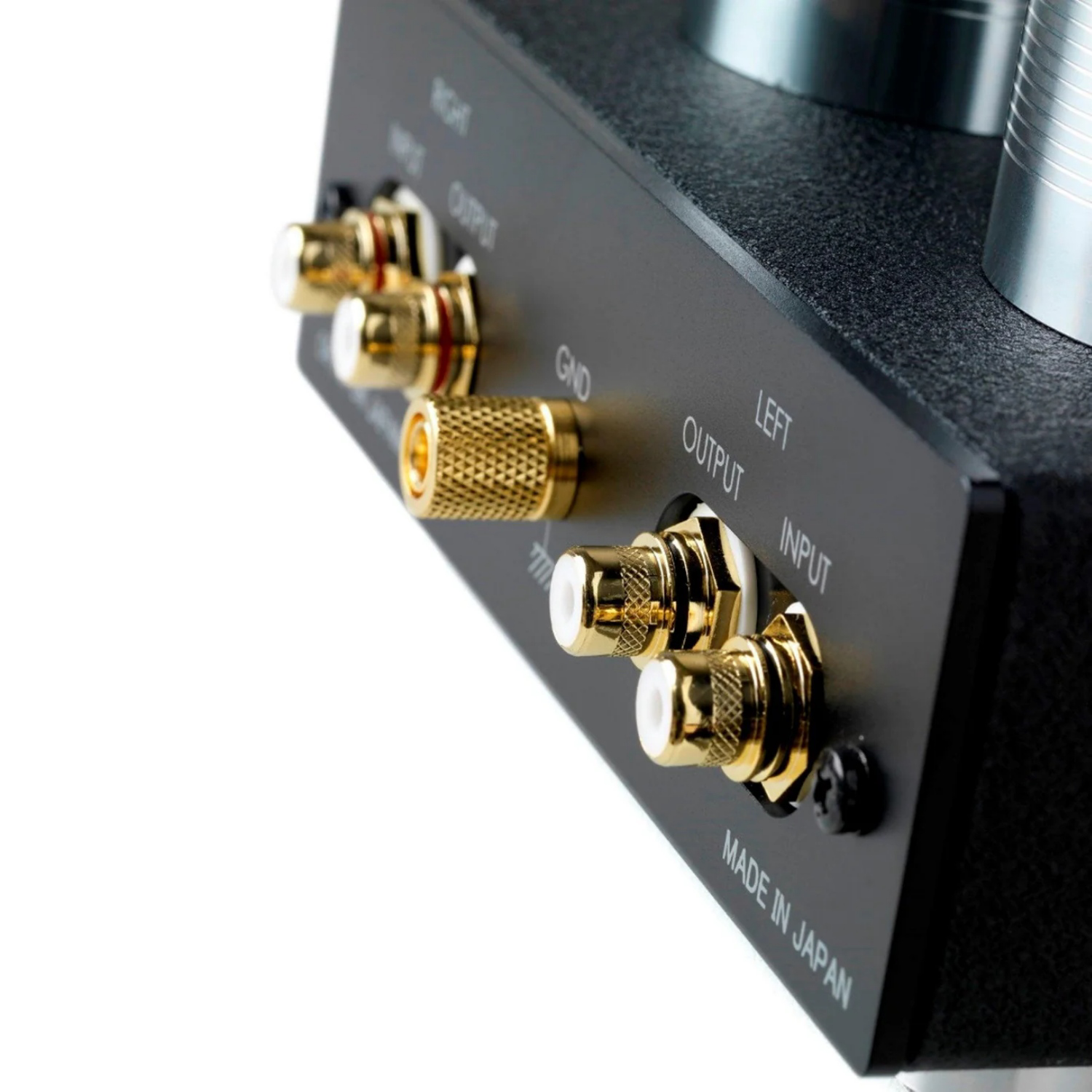

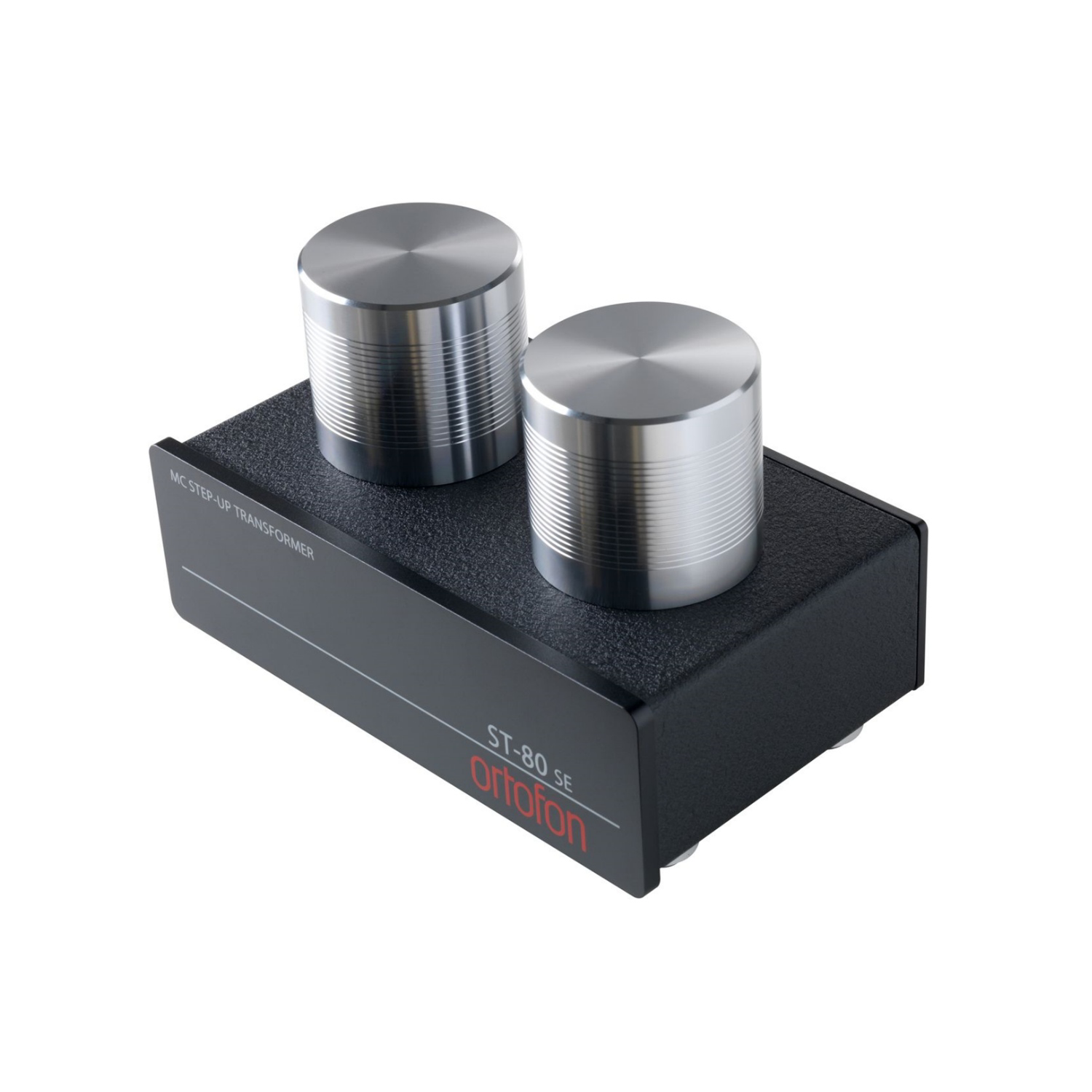

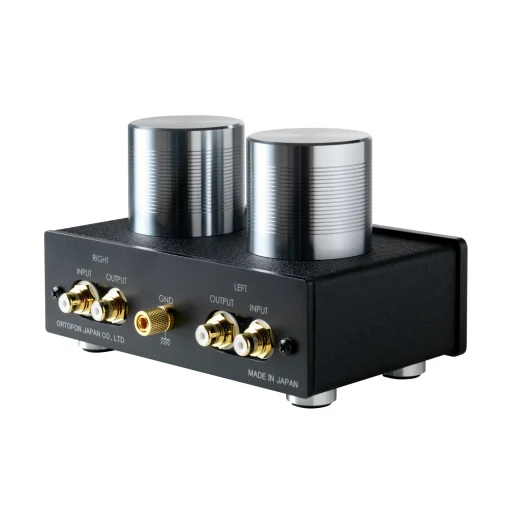

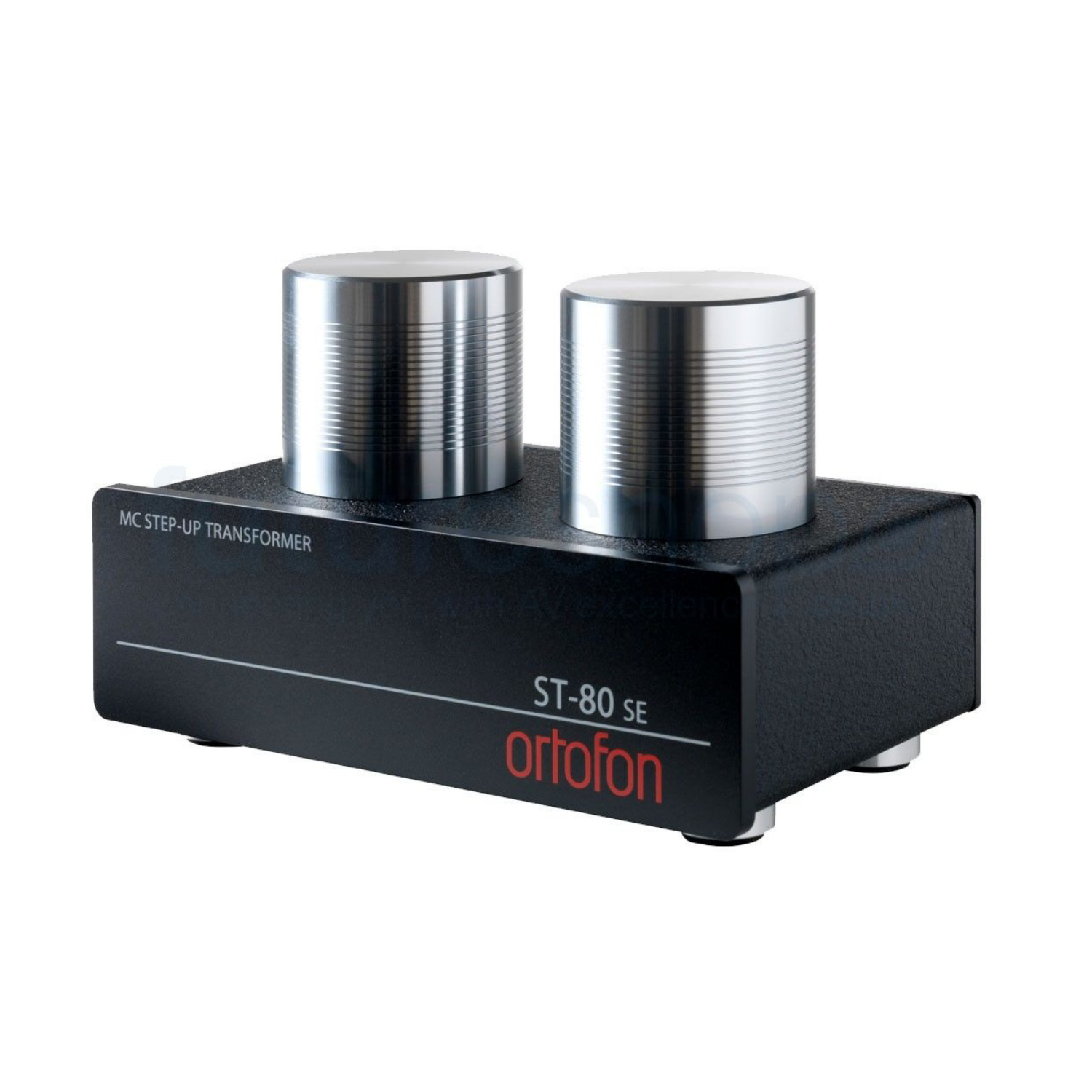

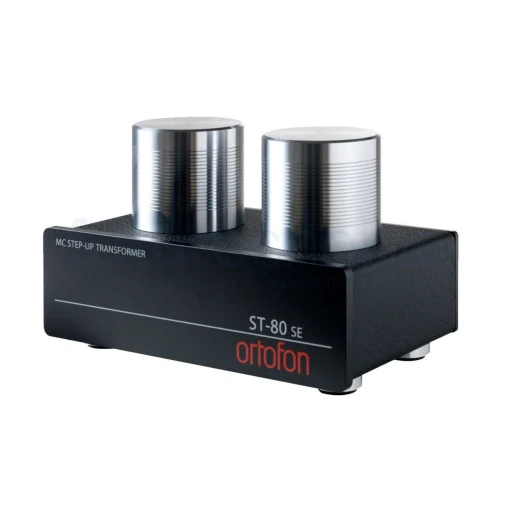

The transformer is magnetically shielded in a permalloy case, which in turn is inserted into a robust 10mm thick aluminum cylinder bored out of a solid aluminum block. Together with the heavy metal case the transformer effectively isolates against environmental noise. The stability of the transformer is superb thanks to its substantial weight of 1.5 kg, ensuring it stays in place even when cables are attached. The ST-80 SE is built as a pure dual mono model, which ensures maximum channel separation. Internal point-to-point wiring is made by Teflon-insulated, solid-core pure OFC copper-wire plated with gold. Together with high-quality gold-plated RCA jacks with Teflon insulation that ensures the optimum signal transmission and integrity.

Specification

(MM Position)

Through Ｃonnection Inside

(MC Position)

Frequency Response： 10 ～ 100kHz (+0.5dB -2.5dB)

Gain： 27dB (47kΩ/1kHz)

Input Impedance: 2Ω ～ 6Ω

Load Impedance: ＞47kΩ

Channel Balance: ＜0.5dB

Channel Separation: ＞90dB (1kHz)

Dimension： 153 W x 95 H x 110 D mm

Weight： 1.36kg
