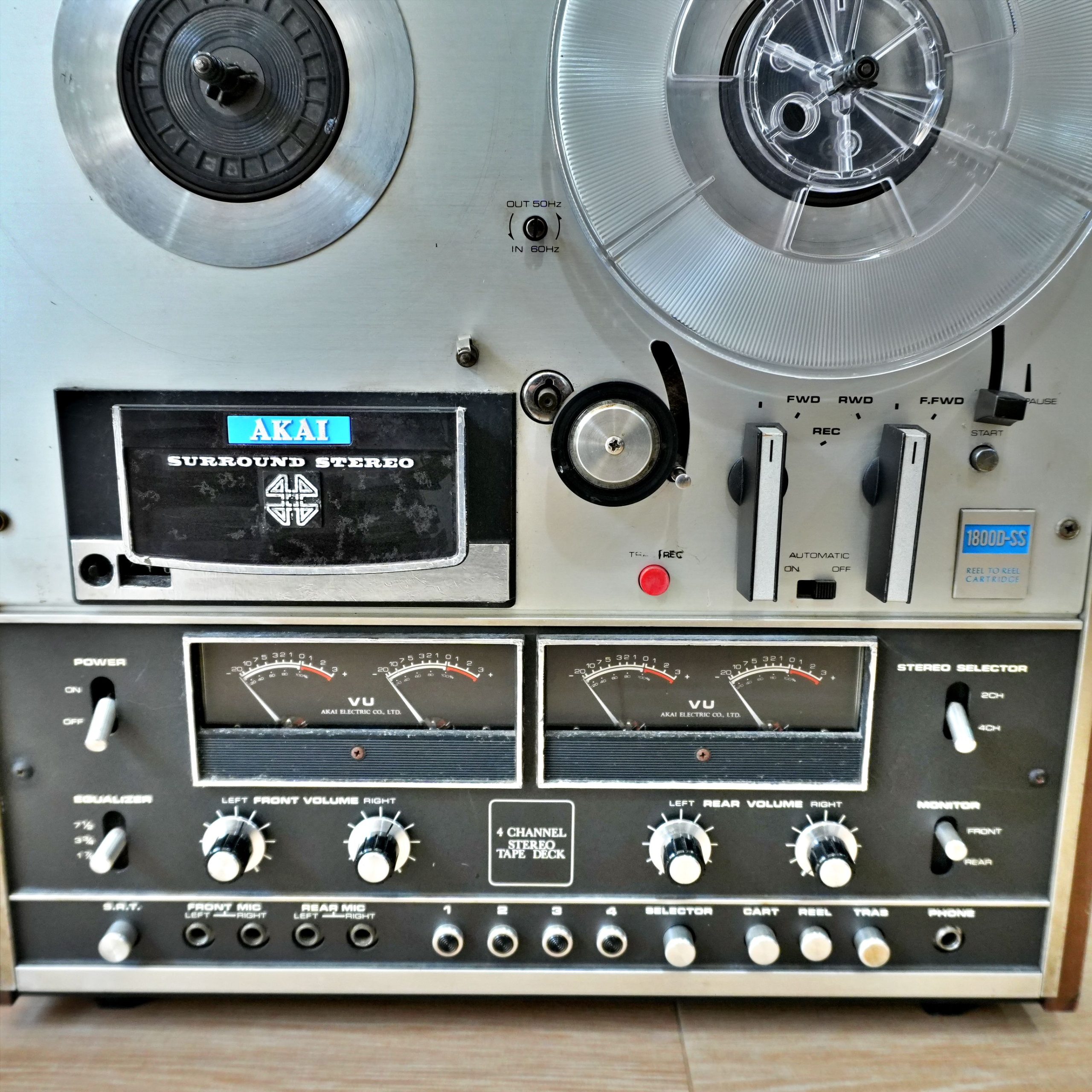

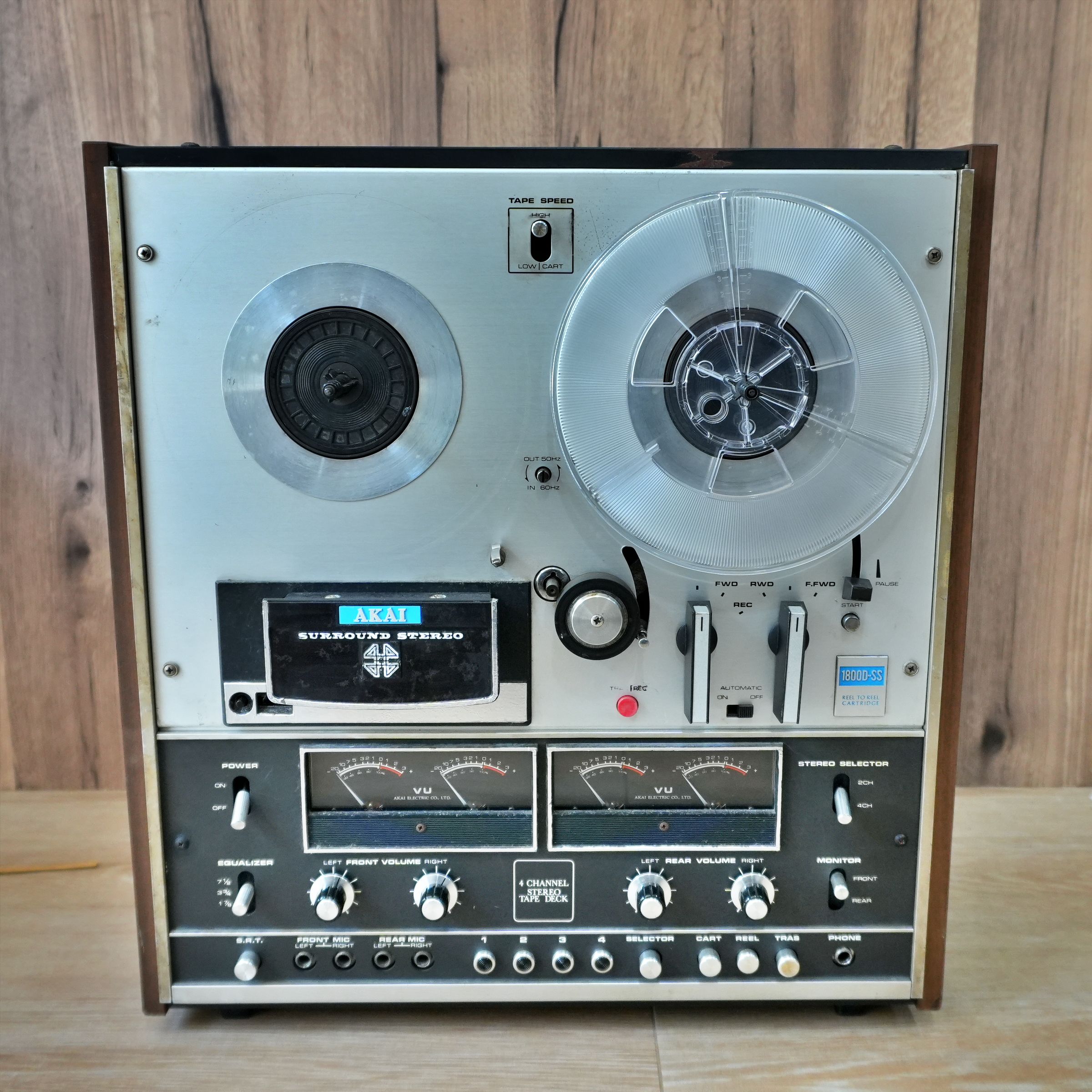

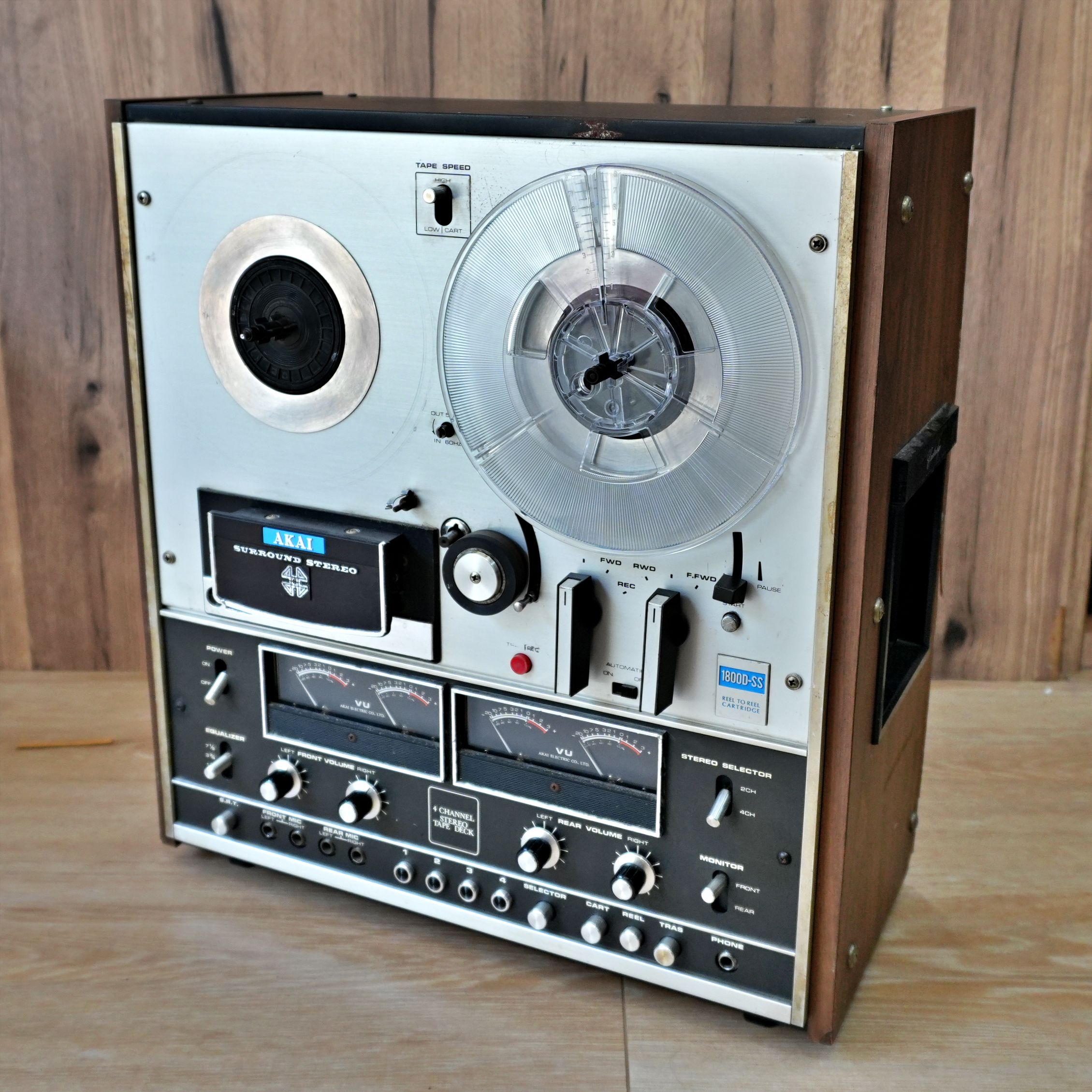

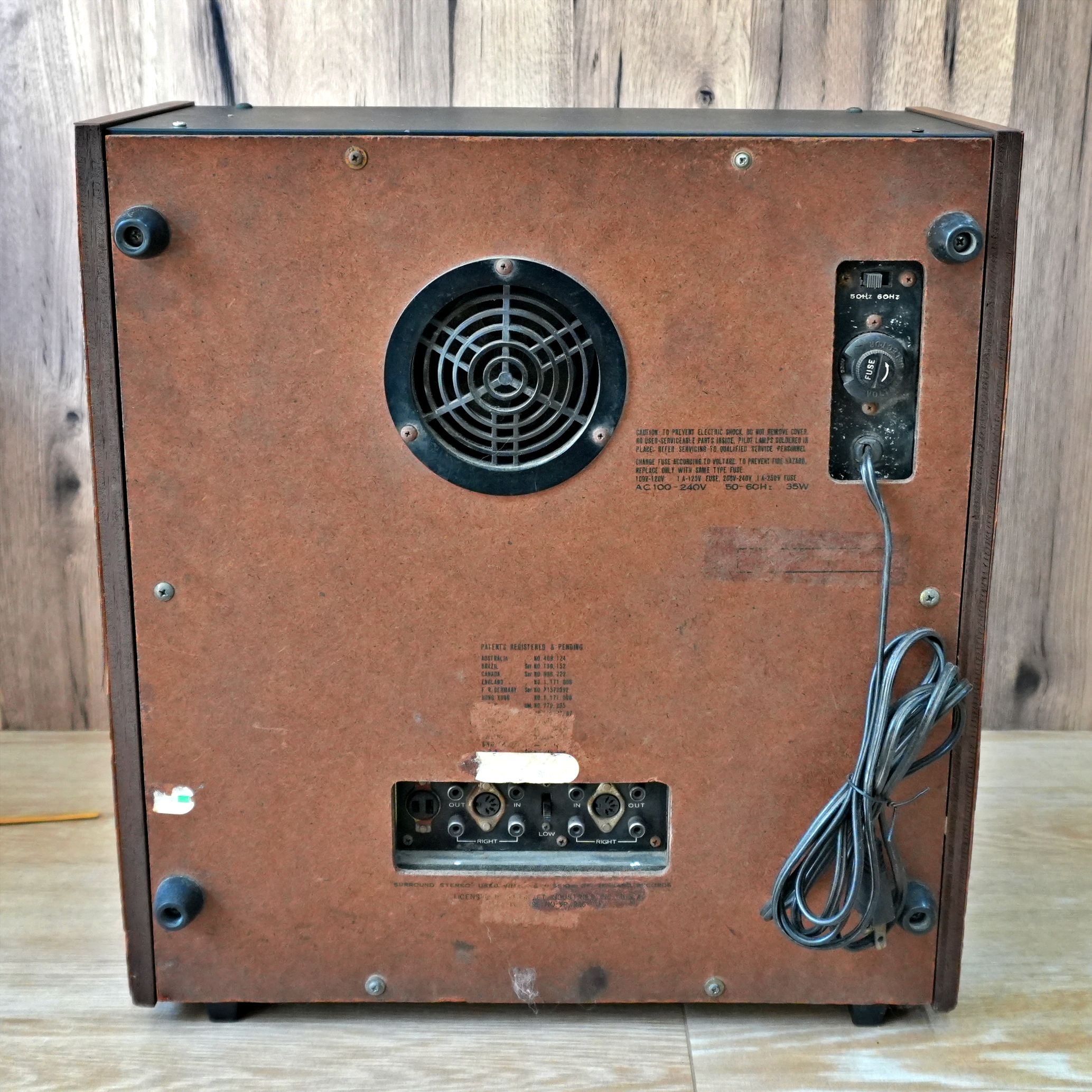

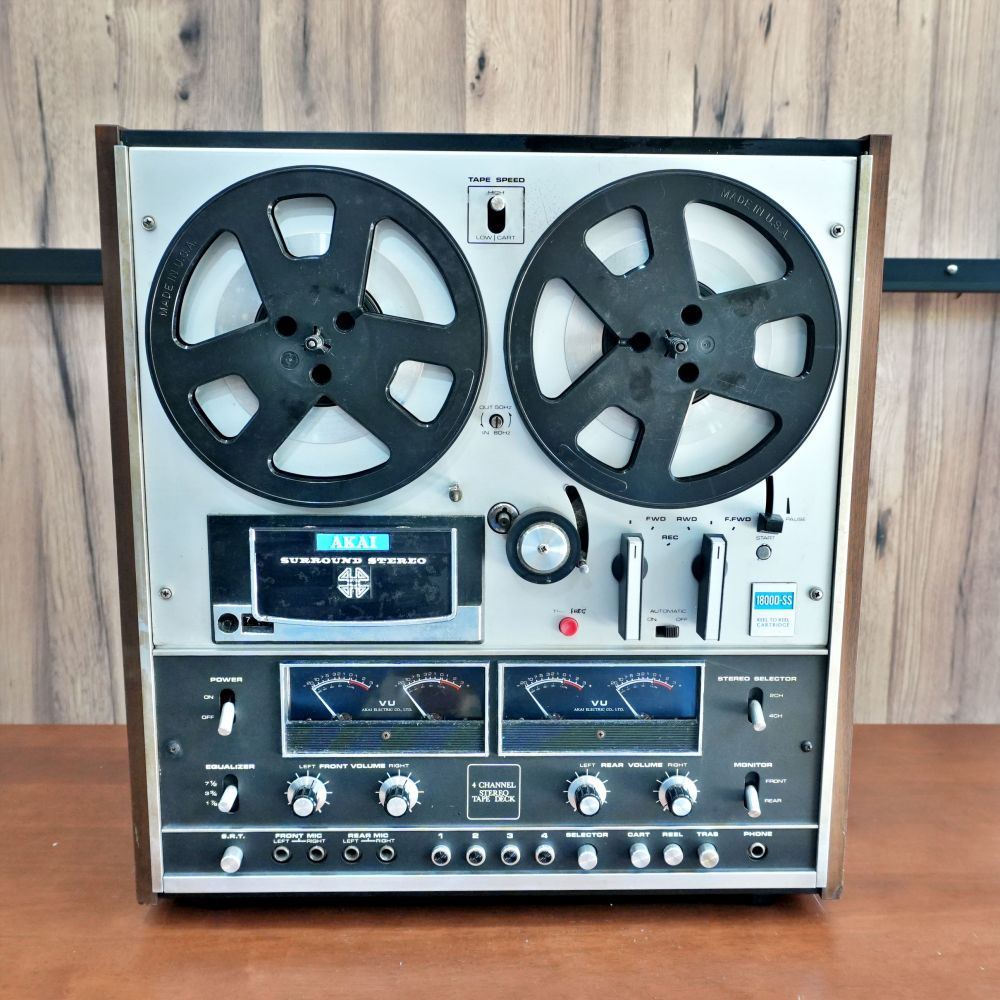

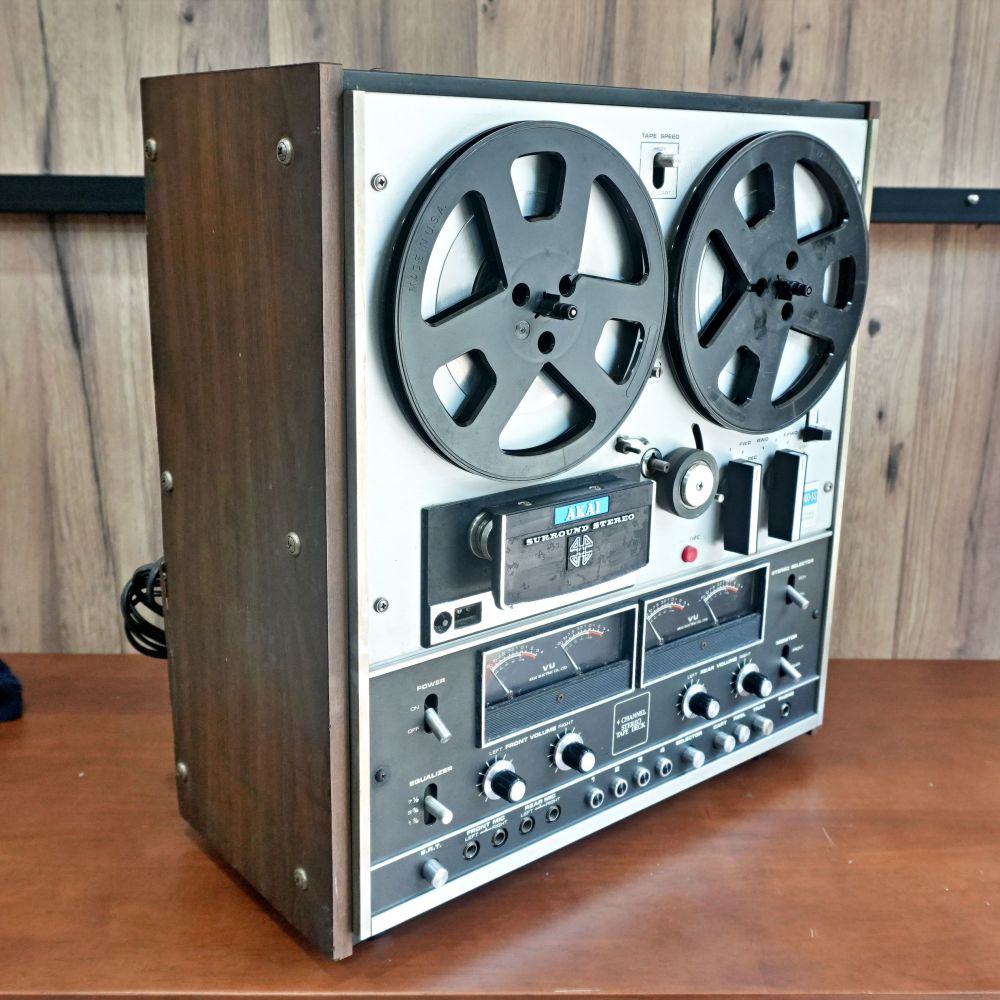

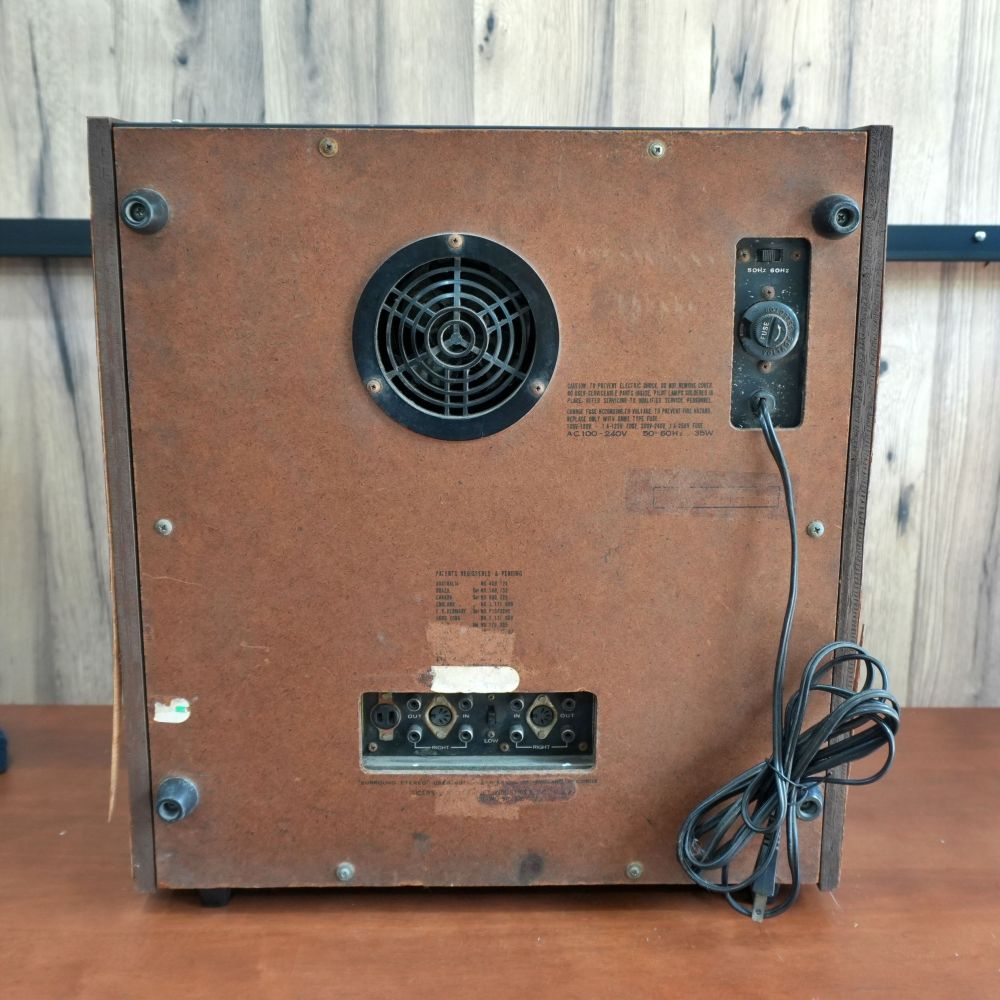

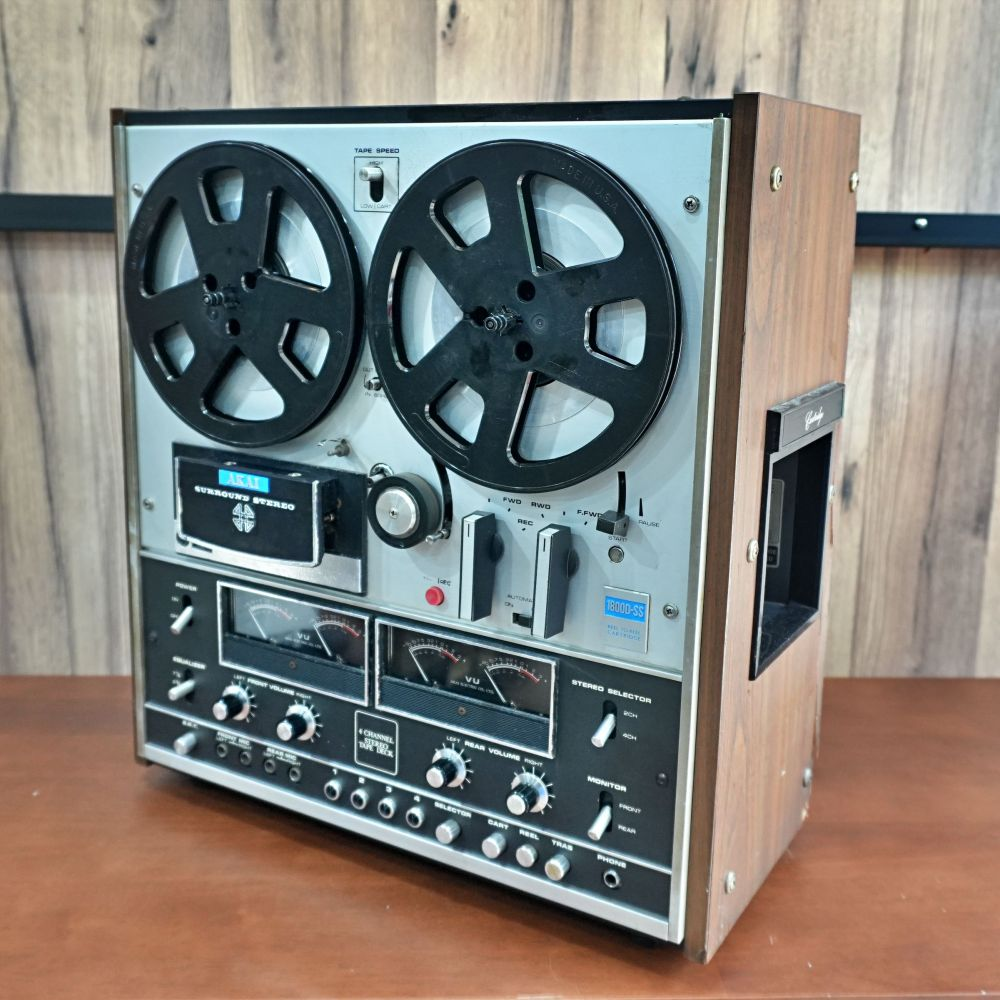

Tape Reel Akai 1800D-SS
15,000 บาท
รายละเอียดสินค้า
– สินค้ามือสอง สภาพดี
– ผ่านการตรวจสอบและทดสอบการใช้งานแล้ว
– ราคาเฉพาะตัวเครื่อง ไม่รวม Roll / Hub
Specifications
| Track system |
| quarter-track, four channel surround sound and quarter-track stereo |
| four-channel eight-track cartridge |
| Heads |
| three: full track & quarter-track erase heads, record/replay combined |
| (reel to reel section) |
| Motors |
| one hysteresis synchronous two-speed motor |
| Frequency response ( 3dB) |
| 7½ ips: 30Hz to 22kHz |
| 3¾ ips: 30Hz to 15kHz |
| 1 7/8 ips: 50Hz to 7kHz |
| Wow & flutter |
| less than 0.12% at 7½ ips; less than 0.15% at 3¾ ips |
| Signal to noise ratio |
| better than 50 dB at 7½ ips |
| Distortion |
| less than 1.5% at 7½ ips (1,000Hz at “0” VU recording) |
| Erase ratio |
| better than 70dB |
| Bias frequency 100kHz |

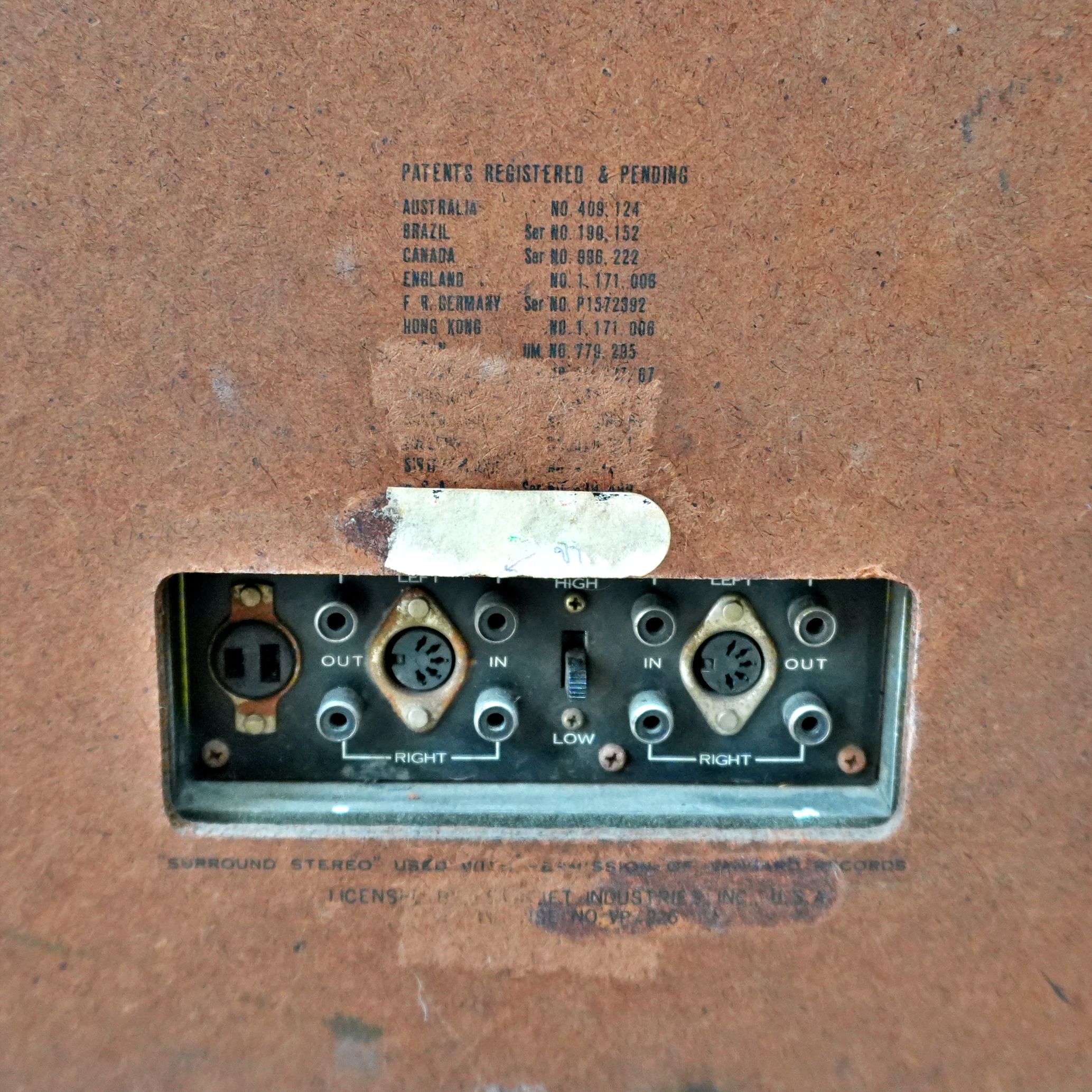

| Inputs |
| 4 x Microphone: 0.4 mV impedance 30 Kohms |
| 4 x Line: 40 mV impedance 100 Kohms |
| 2 x DIN: 5mv |
| Outputs |
| 4 x Line: 1.228V max. load impedance more than 20 Kohms |
| 2 x Din: 0.4V |
| 2 x Headphones (front and rear) : 100 mV at 8 ohms |
